Spring Testing Machine

Digital & Computerized Spring Testing Machine

Stark Embsys manufactures high-precision Digital & Computerized Spring Testing Machines engineered for testing compression springs, tension springs, disc springs, and leaf springs. Equipped with load cells, digital displacement scales, and motorized/manual loading mechanisms, our spring testers determine spring rate (stiffness), free length, loaded length, and solid height.

Essential for automotive spring manufacturers, railway suspension testing, valve spring quality control, and precision instrument spring inspection across India.

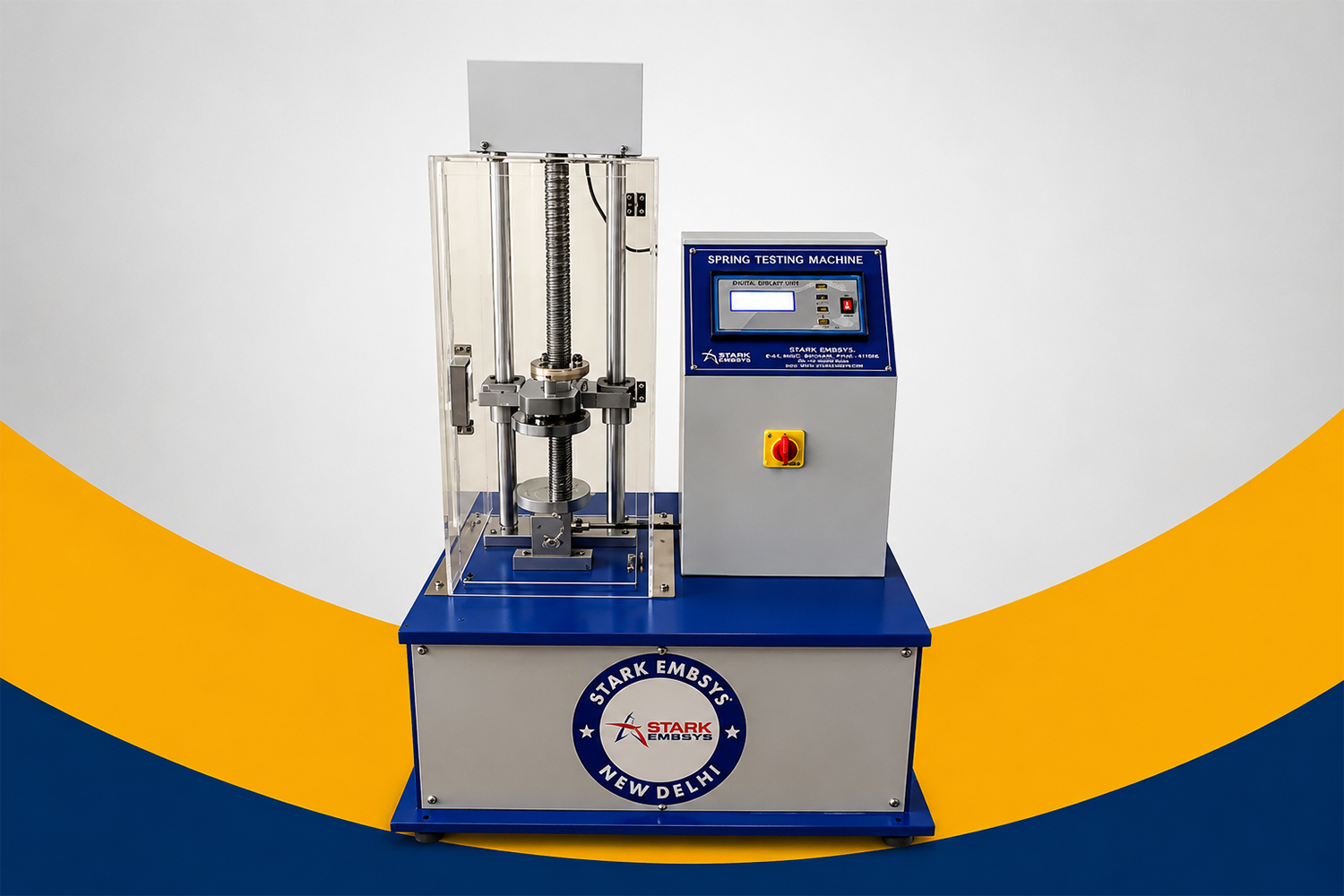

Spring Testing Machine Stark Embsys

Key Features

Spring Rate Calculation

Automated calculation of spring stiffness (N/mm or kg/mm) between two test heights.

Dual Compression & Tension

Includes compression platens and tension hooks for testing coil and extension springs.

Digital Length Encoder

High accuracy linear displacement encoder for exact compression length measurement.

Technical Specifications

Parameter Specification Detail
Product Model / Category ST-STM / Digital & Servo Spring Tester
Capacity Options 10 kg, 50 kg, 100 kg, 500 kg, 1 Ton, 2 Ton, 5 Ton, 10 Ton
Tested Parameters Spring Rate (k), Free Length (L0), Loaded Length (L1, L2), Solid Height
Load Resolution / Accuracy 0.01 N / 0.1 N | Load Accuracy: ±0.5% F.S.
Displacement Resolution 0.01 mm / 0.001 mm Linear Scale
Platen Diameter 100 mm to 300 mm Ground Steel Compression Platens
Production Capacity & Delivery 15 Units/Month | 2 to 3 Weeks Delivery Time

Applications

  • Automotive Suspension
  • Valve Springs
  • Railway Springs
  • Precision Switches
Helical compression spring testing for automotive shock absorbers.
Verifies spring load at specified assembly height to ensure vehicle ride quality.
Engine valve spring load and fatigue verification.
Tests internal engine valve springs for seat force and solid height interference.
Heavy-duty coil and leaf spring testing for railway bogies.
High capacity testing up to 10 Tons for train suspension and wagon draft gear springs.
Miniature compression springs for electrical relays and switches.
Measures micro-gram force and sub-millimeter displacement in precision contacts.

Why Choose Stark Embsys Spring Testing Machine

  • Automated Spring Rate Calculation: Software computes K-factor instantly from load-deflection data.
  • Ground Steel Platens: Parallelism ground compression discs eliminate eccentric bending.
  • Peak Load & Deflection Memory: Stores multi-point height vs. force records.
  • Factory Calibration: Calibrated with precision reference masses and linear scales.
