Tensile Testing Machine

Digital & Computerized Tensile Testing Machine

Stark Embsys manufactures high-precision Digital & Computerized Tensile Testing Machines engineered for measuring ultimate tensile strength (UTS), percentage elongation, proof stress, and fracture behavior of metals, wires, plastics, rubber, textile yarns, and packaging films.

Equipped with interchangeable mechanical wedge grips, digital extensometers, precision lead screw crossheads, and PC software for real-time load vs. displacement graph plotting and automated test report generation according to IS, ISO, and ASTM standards.

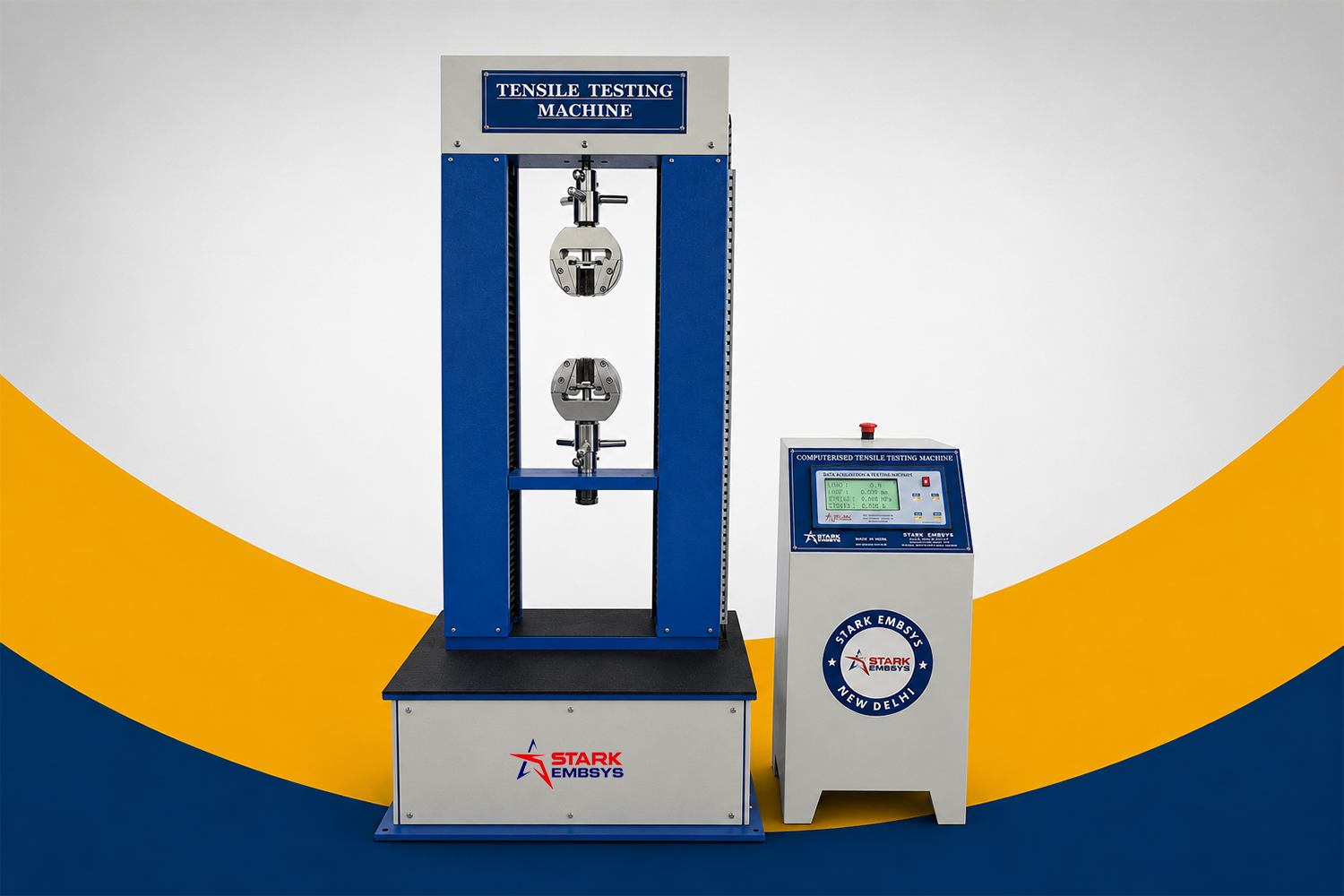

Tensile Testing Machine Stark Embsys

Key Features

Multi-Material Grips

Interchangeable wedge grips for flat metal strips, round bar specimens, wires, and rubber dumbbells.

Digital Elongation Encoder

High resolution optical rotary encoder / electronic extensometer for accurate strain measurement.

PC Software Integration

Windows PC software for live tensile curve display, proof stress evaluation, and batch report printing.

Technical Specifications

Parameter Specification Detail
Product Model / Category ST-TTM / Digital & Computerized Series
Capacity Options 2 kN, 5 kN, 10 kN, 25 kN, 50 kN, 100 kN, 200 kN (200 kg to 20 Ton)
Load Accuracy ±0.5% of indicated load (Class 0.5 / Class 1)
Crosshead Travel / Clearance 800 mm to 1000 mm (Extended height available for high elongation plastics)
Speed Range 1 mm/min to 500 mm/min (Variable speed drive)
Gripping Fixtures Pneumatic / Manual Wedge Grips for Flat & Round samples
Standards Compliance ASTM E8, ISO 6892, IS 1608
Production Capacity & Delivery 15 Units/Month | 3 Weeks Delivery Time

Applications

  • Steel & Wire Testing
  • Plastics & Polymers
  • Textiles & Cordage
  • Paper & Packaging
Tensile testing of steel rebar, copper wires, and sheet metal.
Determines yield point, peak breaking force, tensile strength, and percentage elongation.
Tension testing of PVC, HDPE, rubber seals, and film laminates.
Evaluates tensile modulus and ultimate elongation of high-stretch polymer specimens.
Breaking load test of textile threads, ropes, and webbing belts.
Specialized bollard and capstan grips prevent sample slippage during cord tension testing.
Peel strength and tensile energy absorption of paper & foil.
Measures bond strength of adhesive tapes and seal integrity of flexible packaging.

Why Choose Stark Embsys Tensile Testing Machine

  • High Accuracy Force Sensor: Built with Class 0.5 precision load cell for exact load readings.
  • Versatile Specimen Grips: Quick-change jaws for flat plates, round bars, wires, and polymers.
  • User-Friendly Software: Automated calculation of UTS, Yield Stress, and Young's Modulus.
  • Robust Manufacturing: Built to withstand heavy daily testing cycles in industrial QC labs.
