Universal Testing Machine (UTM)

Computerized Universal Testing Machine (UTM)

Stark Embsys is a leading manufacturer of Computerized Universal Testing Machines (UTM) and Servo-Controlled Testing Systems. Designed for evaluating mechanical properties such as tensile strength, yield stress, elongation, compression resistance, and flexural strength, our UTM machines comply with ASTM, ISO, and IS standards.

Equipped with high-precision strain-gauge load cells, digital optical encoders, servo-drive crosshead speed control, and Windows-based data acquisition software for automated stress-strain graph generation and test report printing.

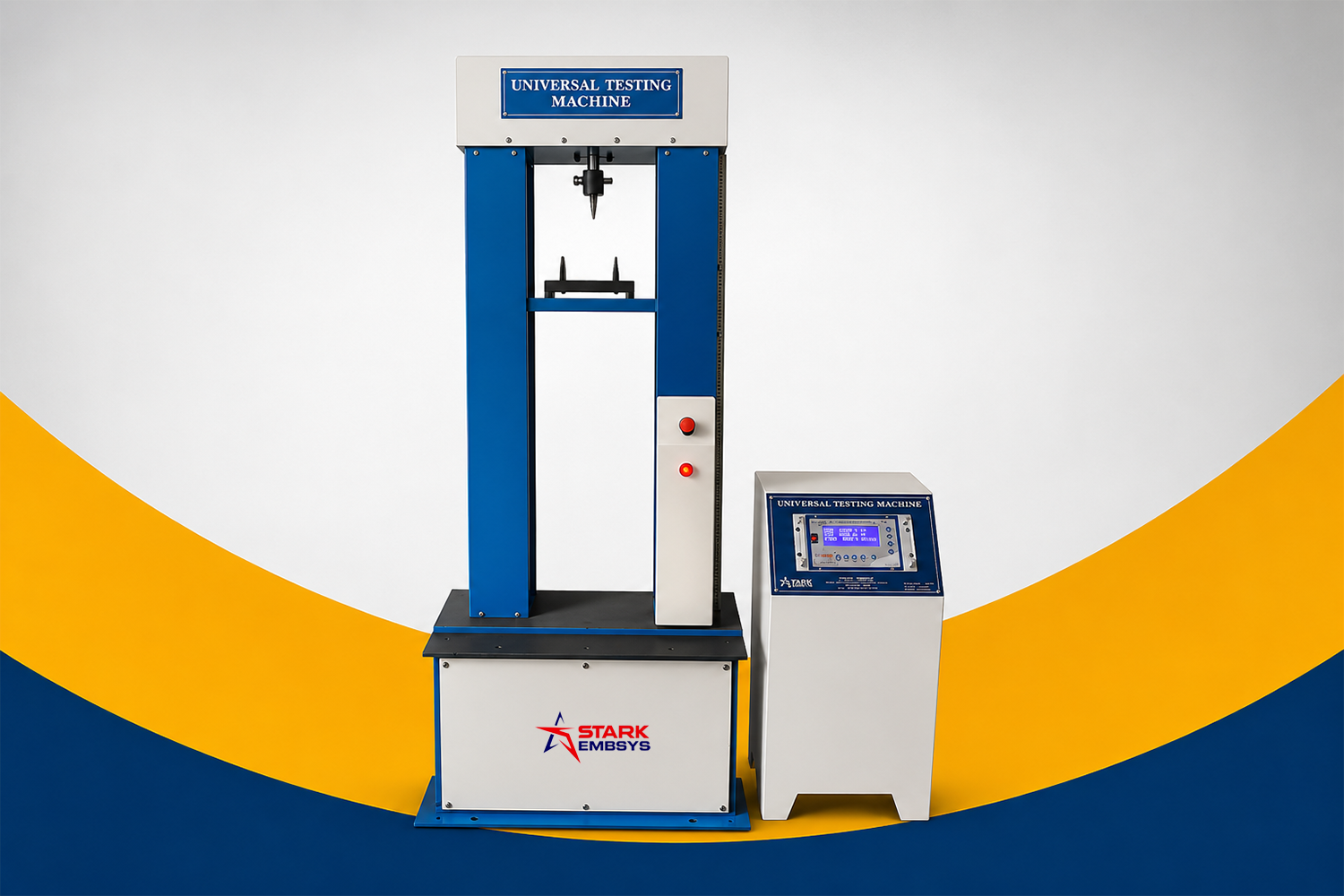

Universal Testing Machine Stark Embsys

Key Features

Computerized DAQ Software

Real-time stress vs. strain graphing, peak load capture, yield point analysis, and PDF report generation.

Servo Drive Speed Control

Precision ball screw drive or hydraulic servo valve for steady, ripple-free crosshead speed control.

Rigid Twin-Column Frame

Heavy-duty loading frame engineered for minimum structural deflection under full test load.

Technical Specifications

Parameter Specification Detail
Product Model / Category ST-UTM / Computerized & Digital Series
Loading Capacity Options 10 kN, 50 kN, 100 kN, 250 kN, 500 kN, 1000 kN (1 Ton to 100 Ton)
Test Modes Tensile, Compression, Bending, Shear, Peeling
Load Measurement Accuracy ±0.5% of indicated load (Class 0.5 / Class 1)
Displacement Resolution 0.01 mm / 0.001 mm via Optical Encoder
Crosshead Speed Range 0.01 mm/min to 500 mm/min (Variable Servo Speed)
Software Interface Windows PC Software via USB / RS232 / Ethernet
Compliance Standards ASTM E4, ISO 7500-1, IS 1828
Production Capacity & Delivery 10 Units/Month | 3 to 4 Weeks Delivery Time

Applications

  • Metal & Alloy Testing
  • Rubber & Plastics
  • Construction Materials
  • Academic R&D Labs
Tensile and yield testing of steel rods, wires, and sheets.
Determines ultimate tensile strength (UTS), 0.2% proof stress, breaking load, and percentage elongation.
Tensile and tear testing of elastomeric and plastic materials.
Evaluates tensile modulus, elongation at break, and peel strength of rubber seals and plastic films.
Compressive and flexural testing of rebar, concrete cubes, and timber.
Measures crushing strength and 3-point bending modulus for civil engineering quality control.
Research laboratories and technical universities.
Provides raw ASCII / Excel data export for academic research and advanced material modeling.

Why Choose Stark Embsys Universal Testing Machine

  • High Accuracy Load Cells: Integrated with Class 0.5 strain-gauge force transducers.
  • Powerful Software Suite: Includes pre-loaded test profiles according to IS/ISO/ASTM standards.
  • Heavy Duty Crosshead Frame: Rigid column design eliminates deflection errors during peak tensile breaks.
  • Complete Installation & Training: On-site setup, calibration, and operator training provided across India.
